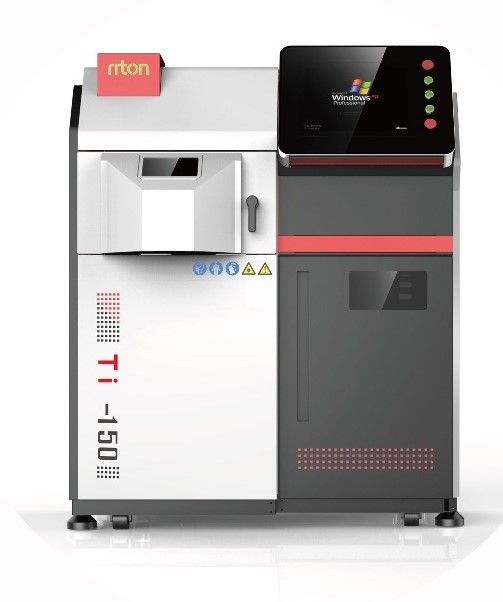

The main parameter of TI-150:
Laser source | Single Fiber lasers |
Output power | ≤300w/≤500w |
Laser wavelength | 1.064μm |
Melting speed | ≤14000mm/s |
Melting area | Φ150mm |
Melting thickness | 20-50μm |
Protect gas | Nitrogen/Argon |
Production | 100 pieces of crown/ 7 pieces of partial frame need 3 hours |
Power supply | 2.5KW 220V |
Whole weight | 850kg |
Dimension | 1300mmx1000mmx1650mm |
Melting material | Titanium(need special assembly for Titanium) |
Environment request | Temp 15℃ -35℃, Humidith≤95%, No vibration |
Advantages of the glove box:
Since titanium powder is an active metal, installing a glove box can reduce the contact between powder and air, effectively control water and oxygen, avoid oxidation, and improve product quality;
The printing plate can be loaded and unloaded in a sealed protective atmosphere, sampling, etc. to improve operational safety and reduce environmental dust pollution;
Reduce the direct contact between the operator and the titanium powder to avoid powder allergy.
Advantages of automatic screener:
Automatic and rapid screening of powder, easy and fast operation; expolsion-proor and dust-proof, reduce environmental dust pollution, and avoid direct exposure of operators to high-concentration floating dust working space.
